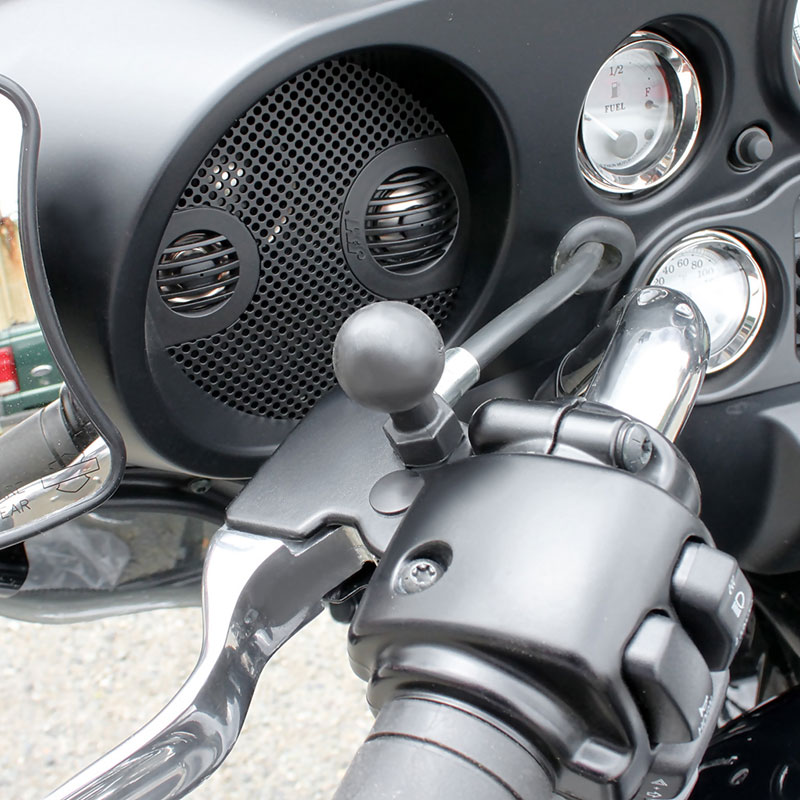

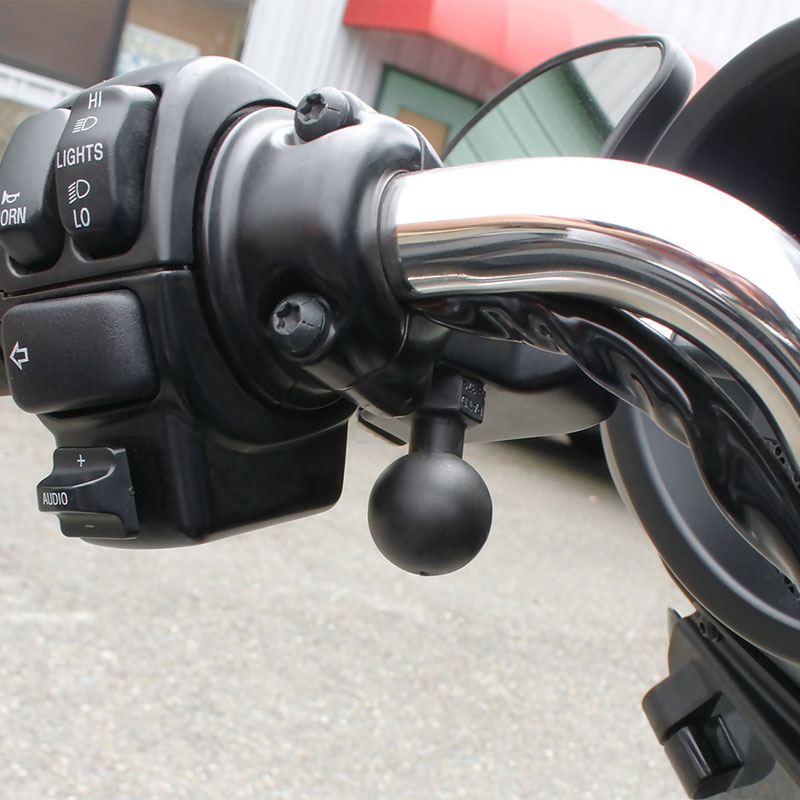

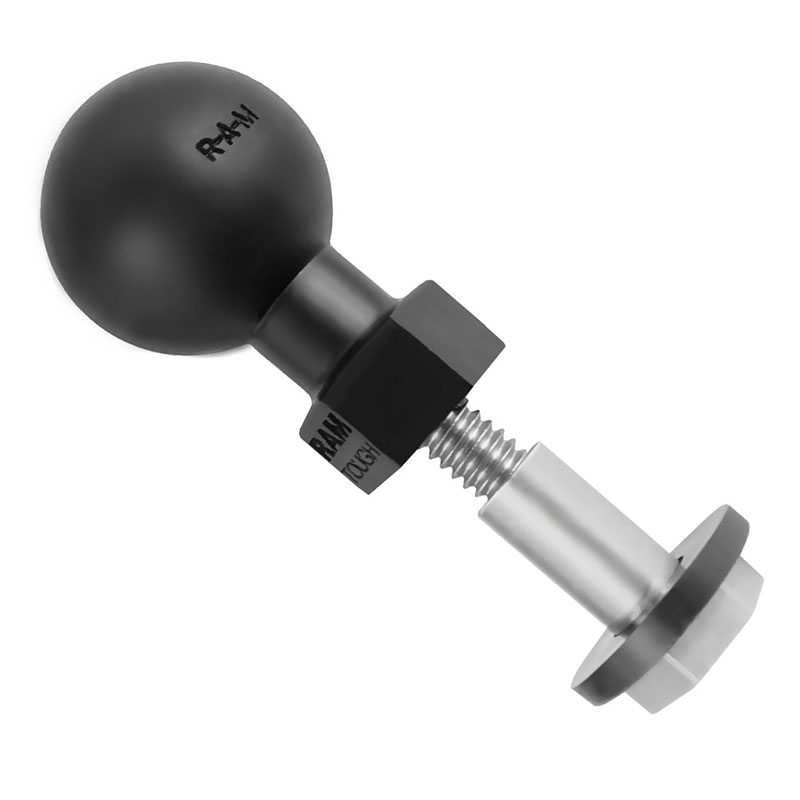

The RAP-B-379-HA1U consists of a 1/4"-20 X 1" thread, connected to a 1" diameter ball, female blind barrel nut and nylon washer.
Features:
1. Base can be mounted above or below mirror holes
2. Rubber ball dampens shock and vibration
3. High strength materials ensure product longevity
Installation Instructions:
1. Locate fairing mirror holes.
2. Place the nylon washer over the barrel nut. Insert the barrel nut into the hole on the controls.
3. Screw the threaded ball into the barrel nut from the other side of the hole. Tighten with 5/8" and 1/2" wrench.
