Nå nye høyder med Nye Ninja ZX-10RR. Grensen for hva som er mulig er økt til ett elt nytt nivå, utfordringen som gjenstår er den i deg selv.Ninja ZX-10RR, FACE YOURSELF!

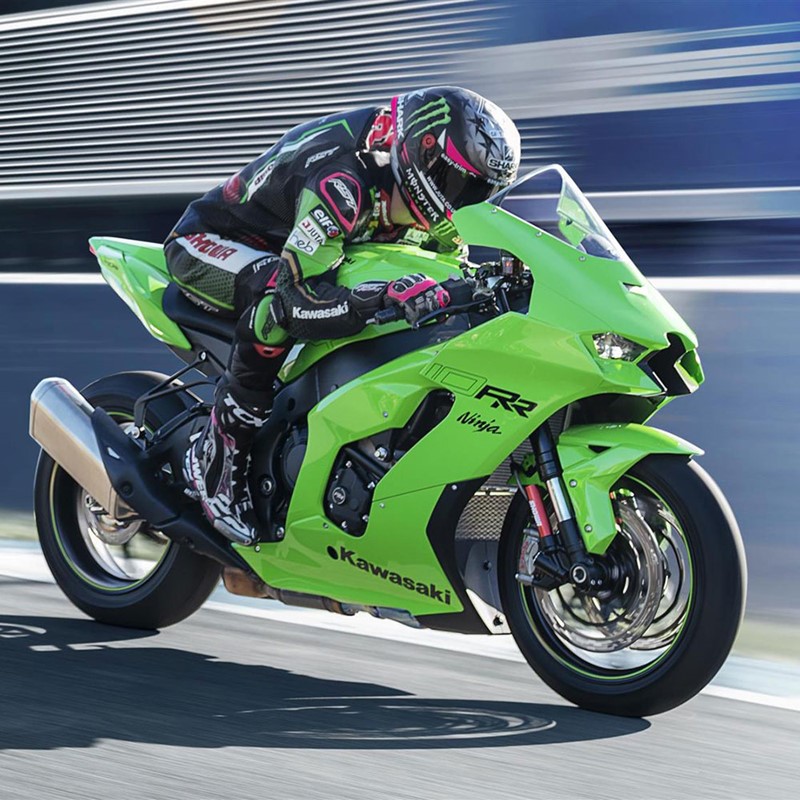

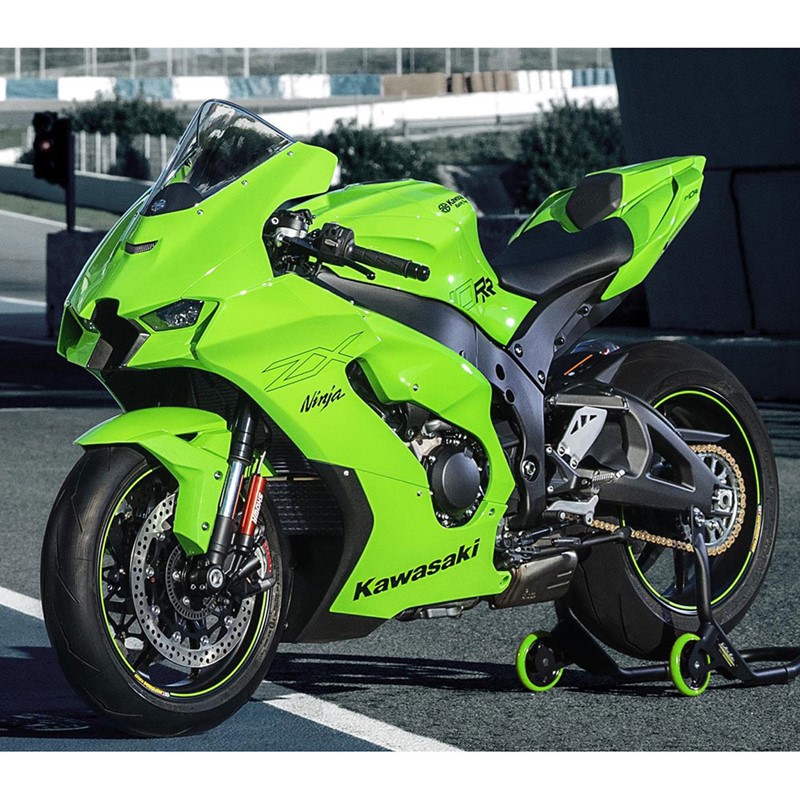

Image shows motorcycle prepared for track use (not available for delivery in this form). Road motorcycle includes indicators, rear view mirrors and number plate.
Høydepunkter

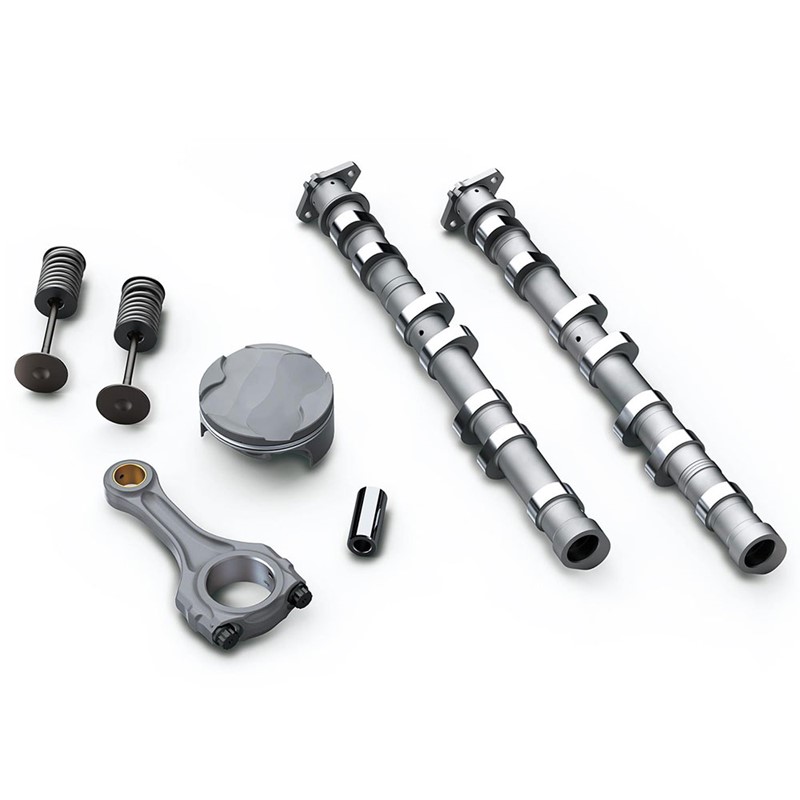

- The use of lightweight titanium connecting rods contributes to the Ninja ZX-10RR’s high rev limit, as well as its 1 PS† peak power advantage versus the standard model Ninja ZX-10R.
- Lightweight pistons save 20 g each. The lower reciprocating weight aids in achieving the higher rev limit and contributes to smoothclimbing revs.
- The RR-specific camshafts were newly designed to elicit high-rpm performance.
- Intake and exhaust valve springs designed for the higher-revving engine contribute to higher performance. Machined valve spring retainers can be produced with greater precision, contributing to the increased reliability needed for high-rpm operation.
- Piston pins are matched to the pistons and feature a DLC (Diamond-Like Carbon) coating to protect against wear.
- More circuit-focused settings for the WSB-developed BFF (Balance Free Front Fork) and BFRC lite (Balance Free Rear Cushion) shock facilitate front-rear weight transfer, and contribute to light handling.

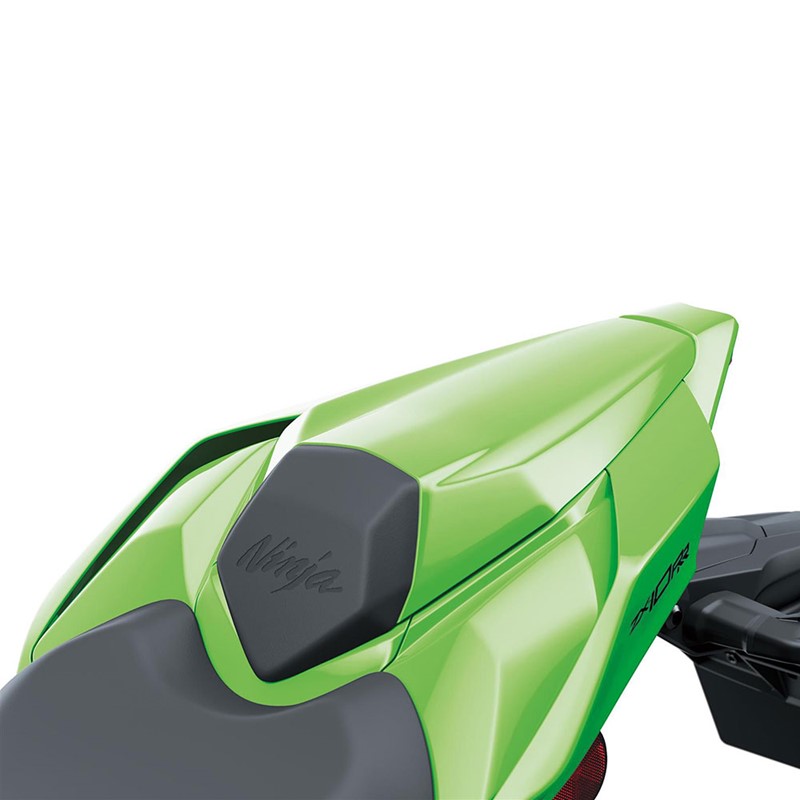

- The single seat enhances the track focus of the Ninja ZX-10RR.

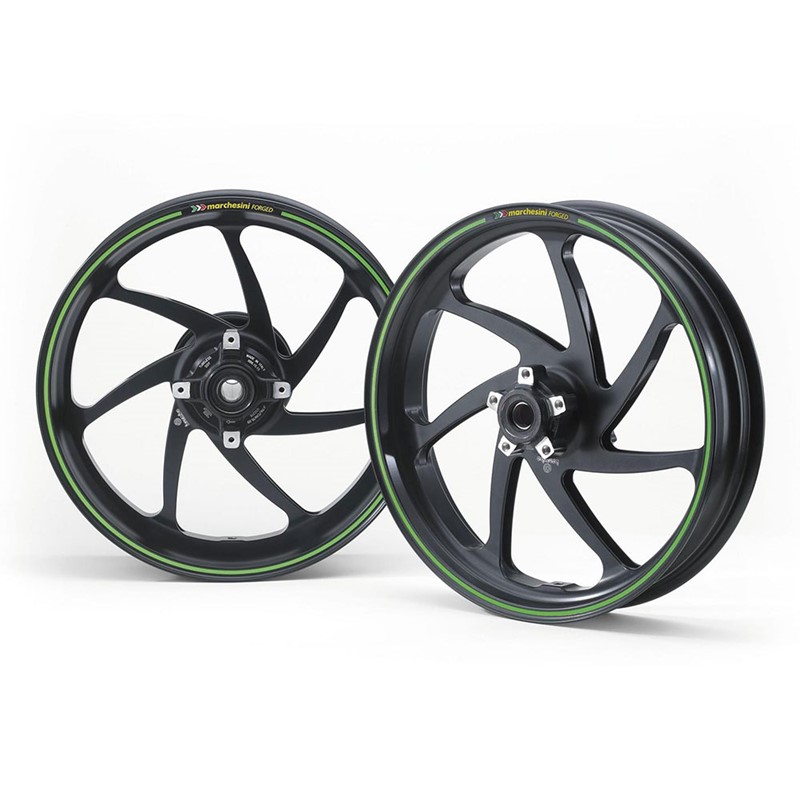

- 7-spoke multi-directional forged aluminium wheels specially developed by Marchesini contribute to lighter handling – especially when changing direction. They offer a balance of high rigidity and a significantly reduced moment of inertia, while their machined finish contributes to a high-quality appearance.
- The Ninja ZX-10RR is fit standard with top of the range Pirelli Diablo Supercorsa SP tyres.
- Dual high-spec Brembo M50 monobloc calipers gripping large ø330 mm discs, specially prepared radial-pump master cylinder and race-quality steel-braided lines* deliver next-level braking performance. *Steel-braided lines on the Ninja ZX-10RR only
- Complementing the highly acclaimed stability of the 2019 model, updates to the chassis geometry contribute to increased cornering performance and light handling.
- Based on feedback from Kawasaki’s WSB race machine, the new air-cooled oil cooler features an independent circuit – a design often seen on highperformance models.
- Winglets built into the upper cowl generate downforce that helps keep the front wheel on the ground during strong acceleration.
- Updates to the Ninja ZX-10R’s powerful engine offer cleaner emissions while maintaining the performance of its predecessor.
- Updated handlebar and footpeg positions contribute to a more aggressive, circuit-focused riding position, while a new seat design helps riders minimise drag when tucked behind the windshield going down the straight.
- All-inclusive modes that link S-KTRC and Power Mode allow riders to efficiently set traction control and power delivery to suit a given riding situation.
- The compact new all-digital TFT colour instrumentation gives the cockpit a high-tech, high-grade appearance. The new meter also offers additional features unavailable on the previous model.
- The aerodynamic racer-inspired front cowl, highlighted by compact LED headlights, new Ram Air intake and a taller windshield, is the “face” of the Ninja ZX-10R’s nextgeneration Ninja styling.
- The Ninja ZX-10R’s gear ratios were idealised for circuit riding. A larger rear sprocket (39T >> 41T) and shorter ratios for 1st, 2nd and 3rd gears offer strong low-mid range acceleration for quicker corner exits, as well as quicker off-the-line acceleration for strong launches on the circuit.
- Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
- In recognition of its achievement in the Superbike World Championship, special permission to use the River Mark on the Ninja ZX-10R was granted. This is its first use on a nonsupercharged mass-production model.
Tilgjengelige farger
|
MOTOR |
Motortype |
Væskekjølt, 4-Takt Rekkefirer |
Slagvolum |
998 cm³ |
Størrelse x slagdybde |
76 x 55 mm |
Kompresjonsforhold |
13.0:1 |
Ventilsystem |
DOHC, 16 ventiler |
Drivstoffsystem |
Innsprøytning: Ø 47 mm x 4 dobbel innsprøytning |
Tenning |
Digital |
Startsystem |
Elektrisk |
Smøring |
Tvunget smøring, våt sump med oljekjøler |
|
YTELSE & TRANSMISSJON |
Maksimal effekt |
150 kW {204 HK} / 14,000 rpm
|
Maksimal effekt med RAM Air |
157.5 kW {214 HK} / 14,000 rpm |
Maksimalt dreiemoment |
111.8 N•m {11.4 kgf•m} / 11,700 rpm |
Drivstofforbruk |
6.1 l/100 km |
CO2 Utslipp |
143 g/km |
Girkasse |
6-trinns, kassett |
Sluttutveksling |
|
Primærutveksling |
1.681 (79/47) |
Utveksling 1.gir |
2.600 (39/15) |
Utveksling 2.gir |
2.158 (41/19) |
Utveksling 3.gir |
1.882 (32/17) |
Utveksling 4.gir |
1.650 (33/20) |
Utveksling 5.gir |
1.476 (31/21) |
Utveksling 6.gir |
1.304 (30/23) |
Sluttutveksling |
2.412 (41/17) |
Clutch |
Våt multi-disk, manuell |
|
BREMSER & FJÆRING |
Bremser, front |
Doble semi-flytende 330 mm Brembo skiver. Caliper: Radialmonterte Brembo M50 monoblock, 4-stemplet |
Bremser, bak |
Singel 220 mm skive. Caliper: Singel-stempel |
Fjæring, front |
43 mm invertert Balance Free gaffel med ekstern kompresjonskammer. Justerbar kompresjons- og returdemping samt justerbar fjærforspenning. Top out fjær |
Fjæring, bak |
Horisontal Back-link med BFRC trykksatt piggyback støtdemper. Justerbar retur- og kompresjonsdemping samt justerbar fjærforspenning. Top-out fjær |
|
RAMME, MÅL OG VEKT |
Rammetype |
Twin spar, støpt aluminium |
Forsprang |
105 mm |
Fjæringsvei foran |
120 mm |
Fjæringsvei bak |
115 mm |
Dekk, front |
120/70ZR17M/C (58W) |
Dekk, bak |
190/55ZR17M/C (75W) |
Styrevinkel V/H |
27° / 27° |
L x B x H |
2,085 x 750 x 1,185 mm |
Akselavstand |
1,450 mm |
Bakkeklaring |
135 mm |
Drivstoffkapasitet |
17 liter |
Setehøyde |
835 mm |
Kjøreklar vekt |
206 kg |
Klargjøring, registrering og leveringsomkostninger kommer i tillegg til oppgitt pris.
