For those like you who rise to any challenge, we have developed the bike that a true champion deserves. The new Ninja ZX-10R & Ninja ZX-10RR have what it takes to win: all new aerodynamic body with integrated winglets, small & light LED headlights, TFT colour instrumentation, and Smartphone connectivity plus updates derived from Kawasaki Racing Team World Superbike expertise.Now that you have the definitive race focused Ninja, Face Yourself.
Nøkkelegenskaper
Light-Handling Chassis
Complementing the highly acclaimed stability of the 2019 model, updates to the chassis geometry contribute to increased cornering performance and light handling.
TFT Colour Instrumentation
The compact new all-digital TFT colour instrumentation gives the cockpit a high-tech, high-grade appearance. The new meter also offers additional features unavailable on the previous model.
Electronic Cruise Control
Kawasaki’s cruise control system allows a desired speed to be maintained with the simple press of a button. Once activated, the rider does not have to constantly apply the throttle. This reduces stress on the right hand when traveling long distances, enabling relaxed cruising and contributing to a high level of riding comfort.
High-Grade Suspension
More circuit-focused settings for the WSB-developed BFF (Balance Free Front Fork) and BFRC lite (Balance Free Rear Cushion) shock facilitate front-rear weight transfer, and contribute to light handling.
Kawasaki River Mark
In recognition of its achievement in the Superbike World Championship, special permission to use the River Mark on the Ninja ZX-10R was granted. This is its first use on a nonsupercharged mass-production model.
Integrated Winglets
Winglets built into the upper cowl generate downforce that helps keep the front wheel on the ground during strong acceleration.
High-Performance Brembo Brake System
Dual high-spec Brembo M50 monobloc calipers gripping large ø330 mm discs, specially prepared radial-pump master cylinder and race-quality steel-braided lines* deliver next-level braking performance. *Steel-braided lines on the Ninja ZX-10RR only.
Close-ratio Transmission
The Ninja ZX-10R’s gear ratios were idealised for circuit riding. A larger rear sprocket (39T >> 41T) and shorter ratios for 1st, 2nd and 3rd gears offer strong low-mid range acceleration for quicker corner exits, as well as quicker off-the-line acceleration for strong launches on the circuit.

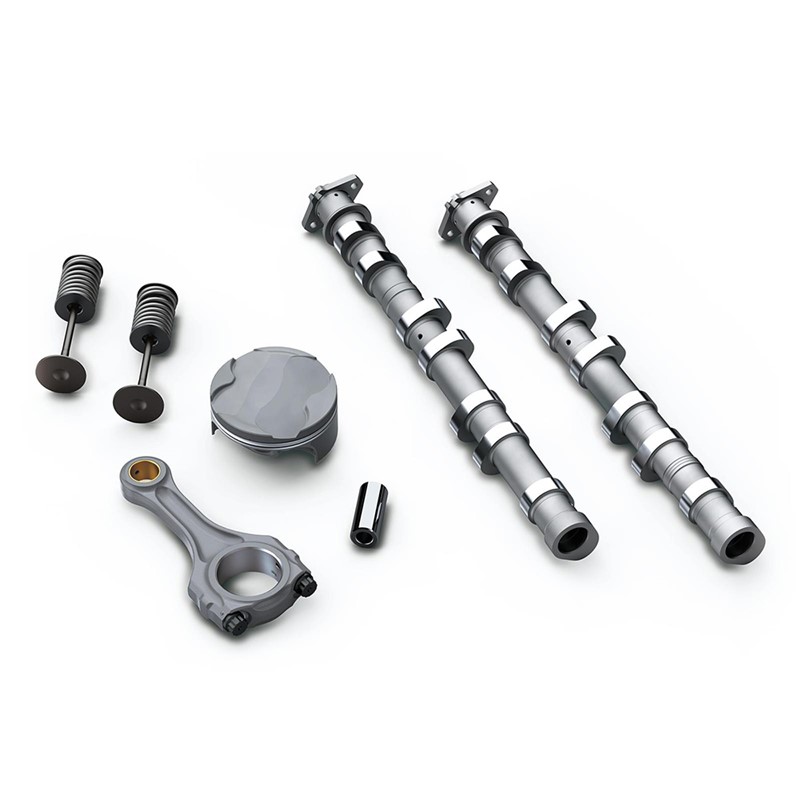

Powerful 998 cm3 Liquid-Cooled, 4-Stroke In-Line Four
Updates to the Ninja ZX-10R’s powerful engine offer cleaner emissions while maintaining the performance of its predecessor.
Aerodynamic Riding Position

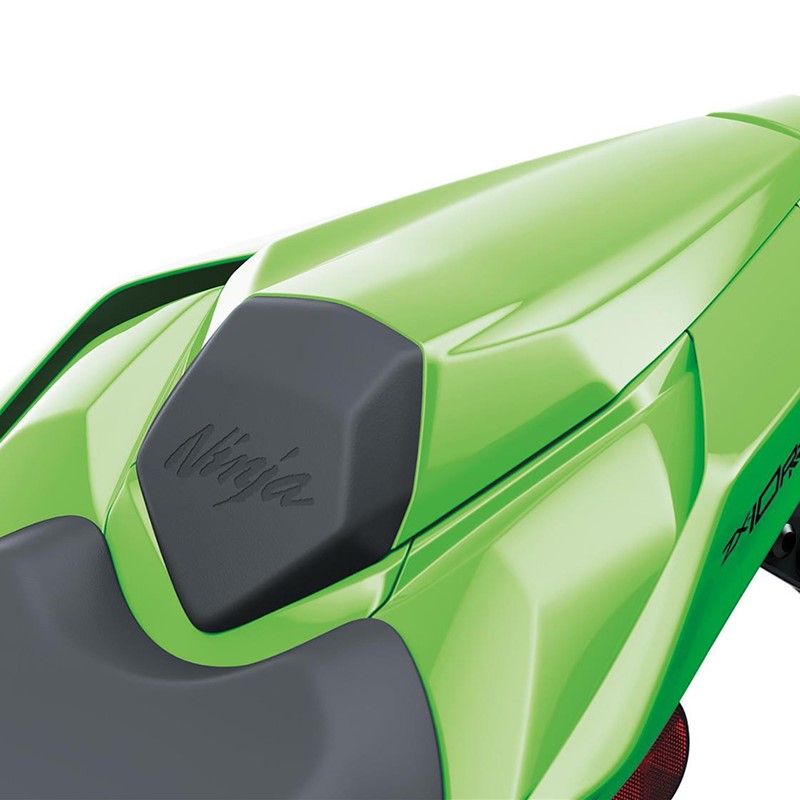

Updated handlebar and footpeg positions contribute to a more aggressive, circuit-focused riding position, while a new seat design helps riders minimise drag when tucked behind the windshield going down the straight.
Next-Generation Ninja Styling
The aerodynamic racer-inspired front cowl, highlighted by compact LED headlights, new Ram Air intake and a taller windshield, is the “face” of the Ninja ZX-10R’s nextgeneration Ninja styling.
Integrated Riding Modes: Sport, Road, Rain, Rider (Manual)
All-inclusive modes that link S-KTRC and Power Mode allow riders to efficiently set traction control and power delivery to suit a given riding situation.
Air-Cooled Oil Cooler
Based on feedback from Kawasaki’s WSB race machine, the new air-cooled oil cooler features an independent circuit – a design often seen on highperformance models.
TILGJENGELIGE FARGER
|
Motor |
Motortype |
Væskekjølt, 4-Takt Rekkefirer |
Slagvolum |
998 cm³ |
Størrelse x slagdybde |
76 x 55 mm |
Kompresjonsforhold |
13.0:1 |
Ventilsystem |
DOHC, 16 ventiler |
Drivstoffsystem |
Innsprøytning: Ø 47 mm x 4 dobbel innsprøytning |
Tenning |
Digital |
Startsystem |
Elektrisk |
Smøring |
[object HTMLCollection] |
|
Ytelse & Transmissjon |
Maksimal effekt |
150 kW {204 HK} / 14,000 rpm |
Maksimalt dreiemoment |
111.8 N•m {11.4 kgf•m} / 11,700 rpm |
Drivstofforbruk |
TBC l/100 km |
CO2 Utslipp |
TBC g/km |
Maksimal effekt med RAM Air |
157.5 kW {214 HK} / 14,000 rpm |
Girkasse |
6-trinns, kassett |
Sluttutveksling |
Forseglet kjede |
Primærutveksling |
1.681 (79/47) |
Utveksling 1.gir |
2.600 (39/15) |
Utveksling 2.gir |
2.158 (41/19) |
Utveksling 3.gir |
1.882 (32/17) |
Utveksling 4.gir |
1.650 (33/20) |
Utveksling 5.gir |
1.476 (31/21) |
Utveksling 6.gir |
1.304 (30/23) |
Clutch |
Våt multi-disk, manuell |
|
Bremser & Fjæring |
Bremser, front |
Doble semi-flytende 330 mm Brembo skiver. Caliper: Radialmonterte Brembo M50 monoblock, 4-stemplet |
Bremser, bak |
Singel 220 mm skive. Caliper: Singel-stempel |
Fjæring, front |
43 mm invertert Balance Free gaffel med ekstern kompresjonskammer. Justerbar kompresjons- og returdemping samt justerbar fjærforspenning. Top out fjær |
Fjæring, bak |
Horisontal Back-link med BFRC trykksatt piggyback støtdemper. Justerbar retur- og kompresjonsdemping samt justerbar fjærforspenning. Top-out fjær |
|
Ramme, Mål og Vekt |
Rammetype |
Twin spar, støpt aluminium |
Forsprang |
105 mm |
Fjæringsvei foran |
120 mm |
Fjæringsvei bak |
115 mm |
Dekk, front |
120/70ZR17M/C (58W) |
Dekk, bak |
190/55ZR17M/C (75W) |
Styrevinkel V/H |
27° / 27° |
L x B x H |
2,085 x 750 x 1,185 mm |
Akselavstand |
1,450 mm |
Bakkeklaring |
135 mm |
Drivstoffkapasitet |
17 liter |
Setehøyde |
835 mm |
Kjøreklar vekt |
206 kg |
Klargjøring, registrering og leveringsomkostninger kommer i tillegg til oppgitt pris.
