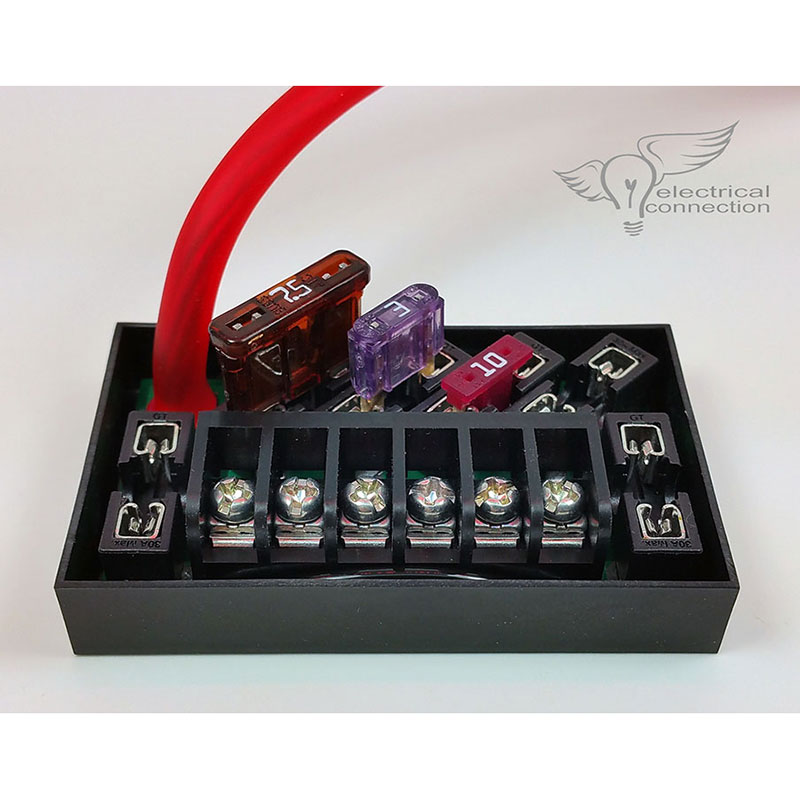

We love to break the rules. The Power Plate is the only fuse block that accepts 3 fuse types; ATC, mini ATC and micro ATC. Our patented design gives you flexibility never before available. Now in the smallest footprint of any fuse block.
The design allows simple and easy installation of electrical components – it allows for future growth too. Installation of a Power Plate helps to keep extra ring terminals off the battery – if you have had this problem, you know the value of having only one ring terminal to connect.
- 6 individually fused outputs; entire unit is rated for 30 amps.
- 10 gauge main power wire with fuse for extra protection.
- Relay controlled (the relay is easily replaced) – it turns all accessories on and off with the ignition.
- Dimensions – 2 1/2? wide, 1 1/2? deep and 5/8? tall (without fuses or cover).
We include a port for connecting a battery charger. The port is automatically disconnected if the key is turned on – very important as a battery charger can go up to 17 volts to overcome the resistance in a deeply discharged battery. Not a problem for the battery, but damage can occur to sensitive computers, relays or even your charger. Problem solved.
Mount the relay under the seat and the fuse block on the side against your battery.

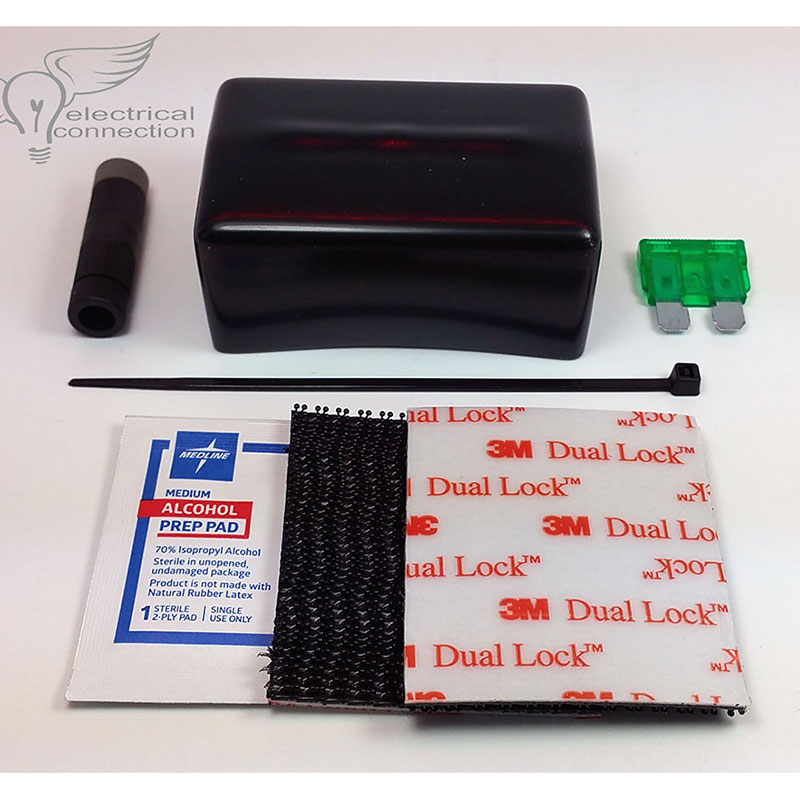

All kits include silicone cover, 30 amp main fuse, PosiTap quick-connector, 3M DuoLock mounting pads, instructions and a legend decal to be placed near the Plate to document fuse function.
Made in USA.
Models: F6B, GL1200, GL1500, GL1800 2001-2005, GL1800 2006-2010, GL1800 2012-2017, Goldwing (2018+), Goldwing Tour (2018+)
