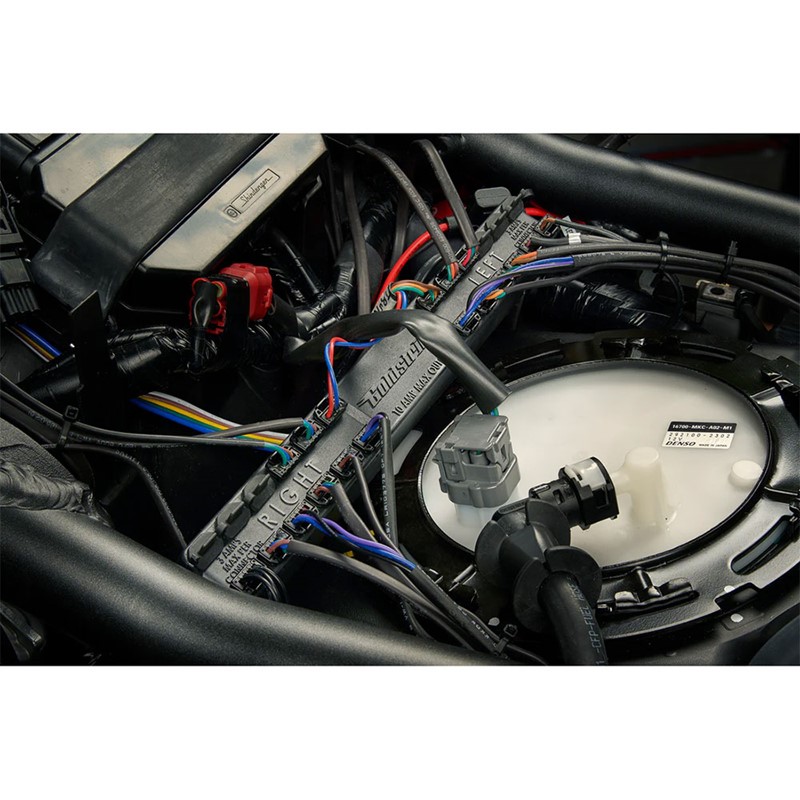

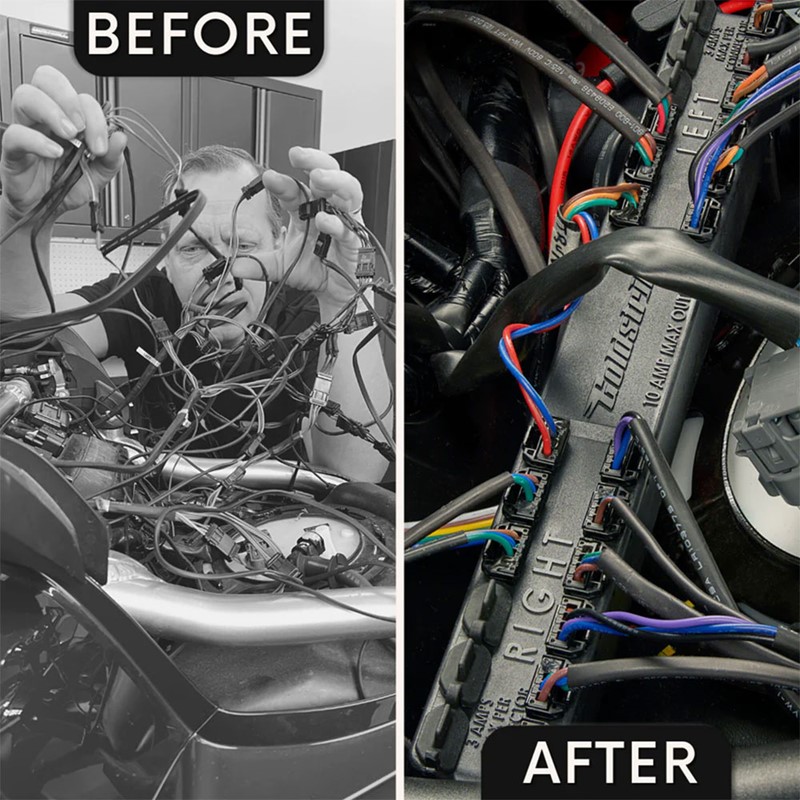

Easily install up to 12 sets of Goldstrike lighting products with one unit. Routing all the accessory wiring to a central Plug-n-Play location makes for a well-organized area that reduces the chances of electrical failure due to pinched wires under the seat. If you have more than 12 lighting kits on your motorcycle just simply add our 48001 Y Splitter Harness to expand to your lighting needs.
The entire Goldstrike Lighting Distribution Block is isolated from the can-bus system used on Gold Wings. Wire trailer lights or other 12 volt lighting accessories directly to this block using the integrated five-wire auxiliary harness.
Have other lighting systems you want to plug into the Lighting Distribution Block, we have that covered also. Simply add one of our wiring adapters and easily plug other manufactures light right in.
Key Features
- Easy to install
- Plugs directly into the main harness, no splicing
- Controls run-turn-brake functions
- 24 individual power ports, 12 right and 12 left
- Easily expandable beyond the 24 ports with the 48001 Y-Splitter
- Isolated power protection
- Five wire output for trailer harness (10 Amp max)
- Strong ABS construction
- Rubber plugs protect unused ports
- 30 Amp total power capability
- 3 Amps per port max
- Pre installed ring terminals for secure battery connection
- Heavy duty mechanical relays
- Circuit protection on every port
- Goldstrike and Twinart lighting accessories plug directly into distribution block
- Wire adapters available (sold separately) for Kuryakyn and Pathfinder lighting kits. Also we offer a universal wire adapter to connect most 12v lighting accessories.
Finish
Location
Plug-N-Play Wire Harness Included

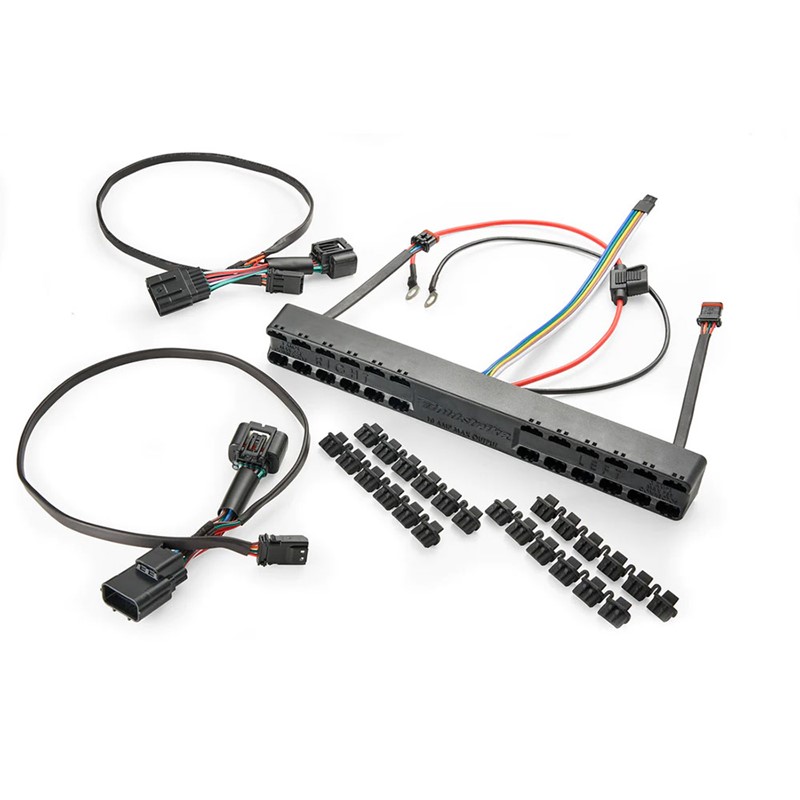

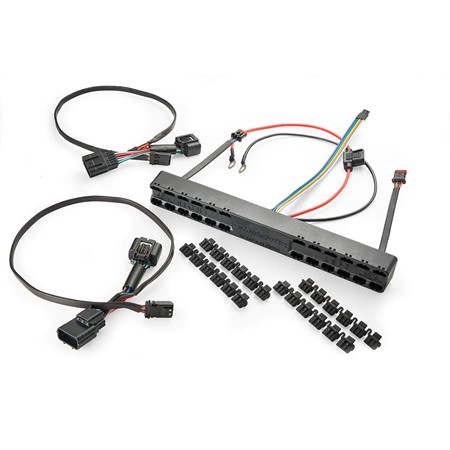

Included With Kit
- One Lighting Distribution Block
- Two Wire Harnesses
Drilling Required
Est. Install Time
- 30 Minutes
Fitment:
2018-up Gold Wing
2018-up Gold Wing DCT
2018-up Gold Wing Tour
2018-up Gold Wing Tour DCT
2018-up Gold Wing Tour DCT Airbag
