- Superior construction for serious power
- NGK makes plugs for almost every application and riding style
- Versatile plugs with wide operating heat ranges prevent fouling from running too cool and preignition from running too hot
- Features high alumina ceramics for improved heat dissipation and electrical insulation, deep-seated copper core for a wider heat range and a nickel alloy tip for longer life
| HEAT RANGE |
5 |
| MODEL |
Standard |
| TERMINAL CONFIGURATION |
threaded Stud |
| THREAD SIZE |
10 mm |
| STYLE |

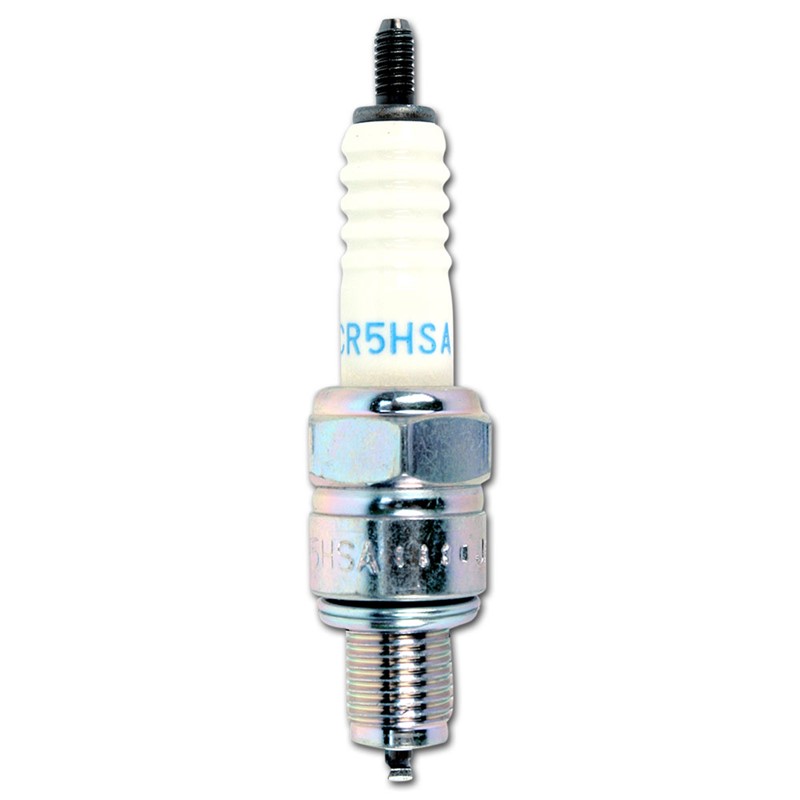

CR5HSA |
| TYPE |
Resistor Type |
| UNITS |
Each |
| PRODUCT NAME |
Spark Plug |
| CENTER ELECTRODE TYPE |
Standard |
| ELECTRODE TIP MATERIAL |
Nickel Alloy |
| CENTER ELECTRODE PROJECTION |
Non-Projected |
| THREAD REACH |
12,7 mm (1/2") |
| HEX SIZE |
16 mm (5/8") |
| GROUND ELECTRODE CONFIGURATION |
Single |
| SPARK GAP |
0,7 mm (0,028") |
| GROUND ELECTRODE SHAPE |
Standard |
| ELECTRICAL RESISTANCE |
5k Ohms |
| SPARK GAP IMPERIAL |
0.028" |
| SPARK GAP METRIC |
0.7 mm |
Fitment:
Honda CMX250C Rebel 2013
Honda CRF50F 2012-2016
